WLED Digital LED Controller
Dual-channel Relay & Fuse · Model GL-C-116WLProfessional WLED controller for high-power addressable LED projects — 20A output, dual relay, dual replaceable fuse, PDM mic and DIY GPIO extension.
- 20A High Current Output10A per channel, 20A total.
- Dual Relay, Energy SavingOutput power auto cut-off when light is off.
- Dual 10A Replaceable FuseDetachable MINI blade fuse per channel.
- 3 Power Input WaysV+ / V− WAGO terminal, Type-C and DC Jack.
- PDM MIC & 200+ EffectsBeat-driven, segmented, sync lighting.
- WLED App + Alexa & HAiOS & Android, voice control.
Key Features
What makes the AeX2gis GL-C-116WL different from a standard WLED controller.

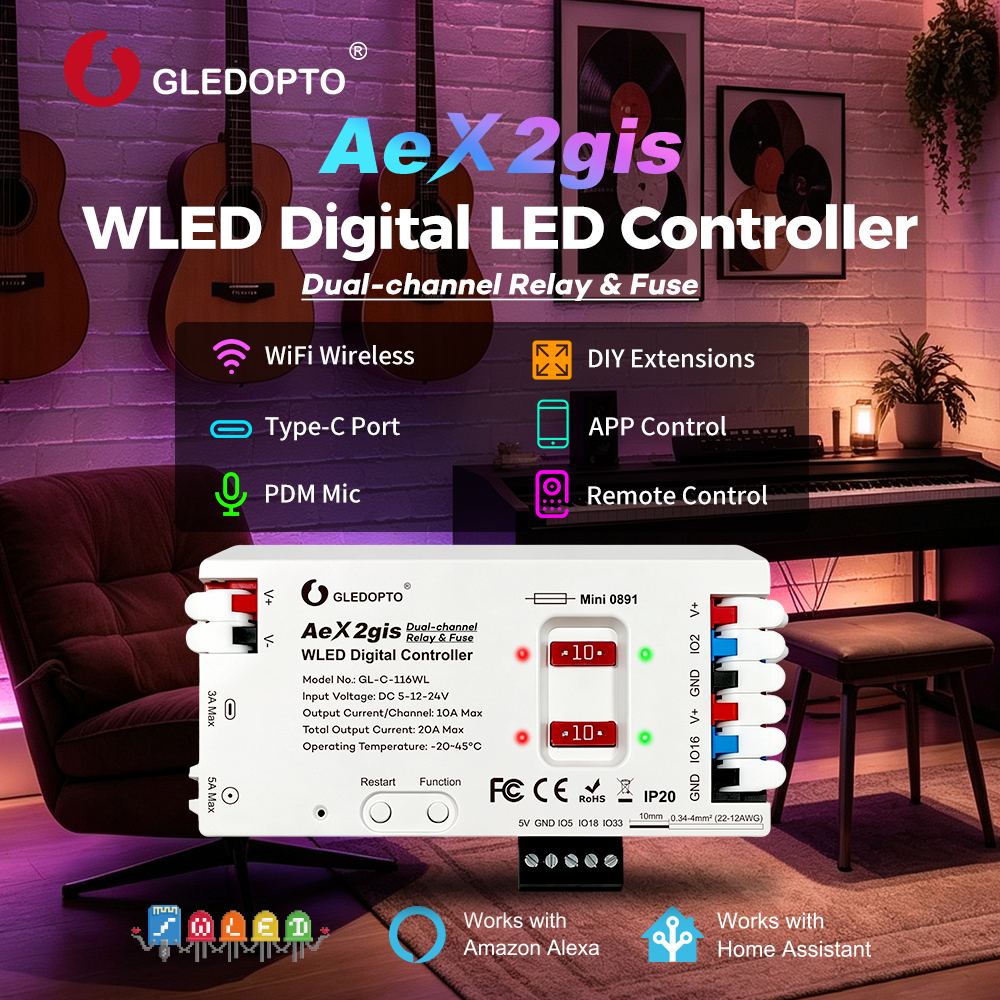

Gledopto AeX2gis WLED Digital LED Controller
Dual-channel Relay & Fuse · WiFi wireless · APP control · remote control · DIY extensions
20A High Current Output
10A Max output current per channel, 20A Max total output current — stably drive longer LED strips.

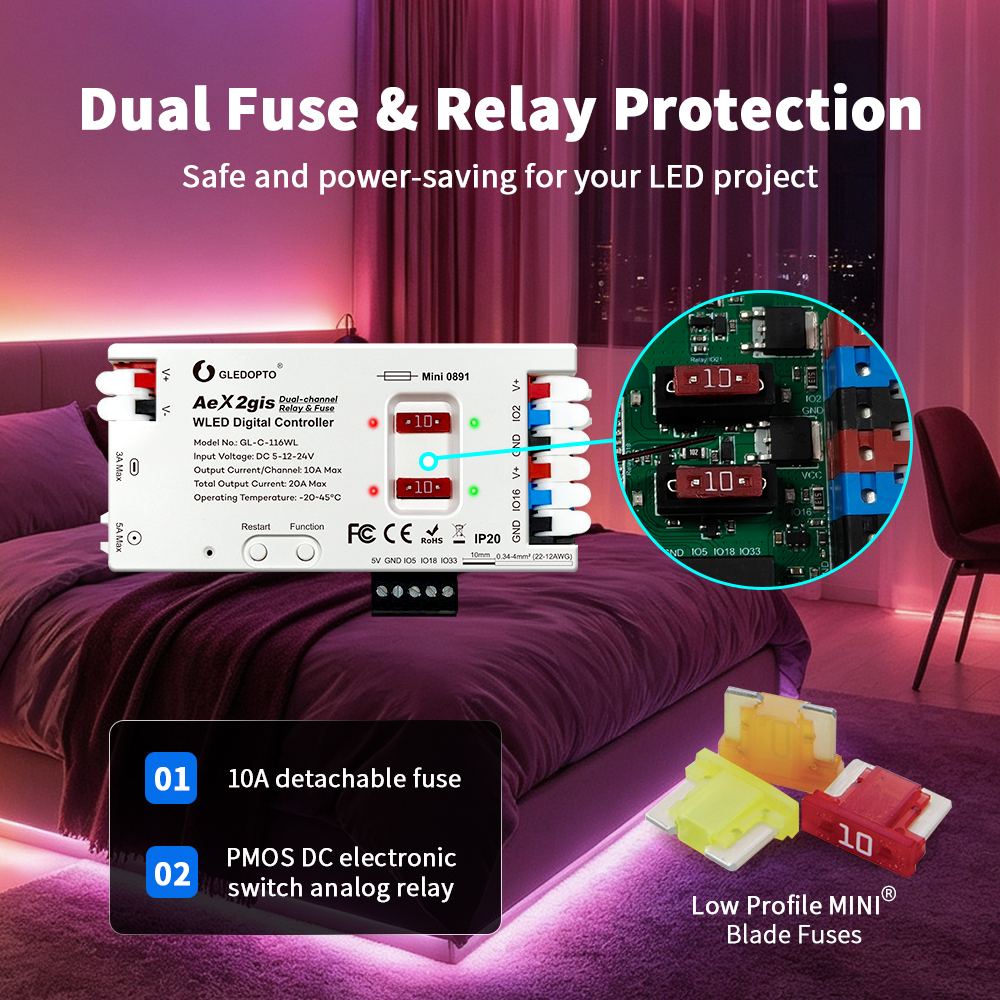

Dual Fuse & Relay Protection
2 × 10A detachable MINI blade fuse plus PMOS DC electronic switch analog relay. Safe and power-saving for your LED project.

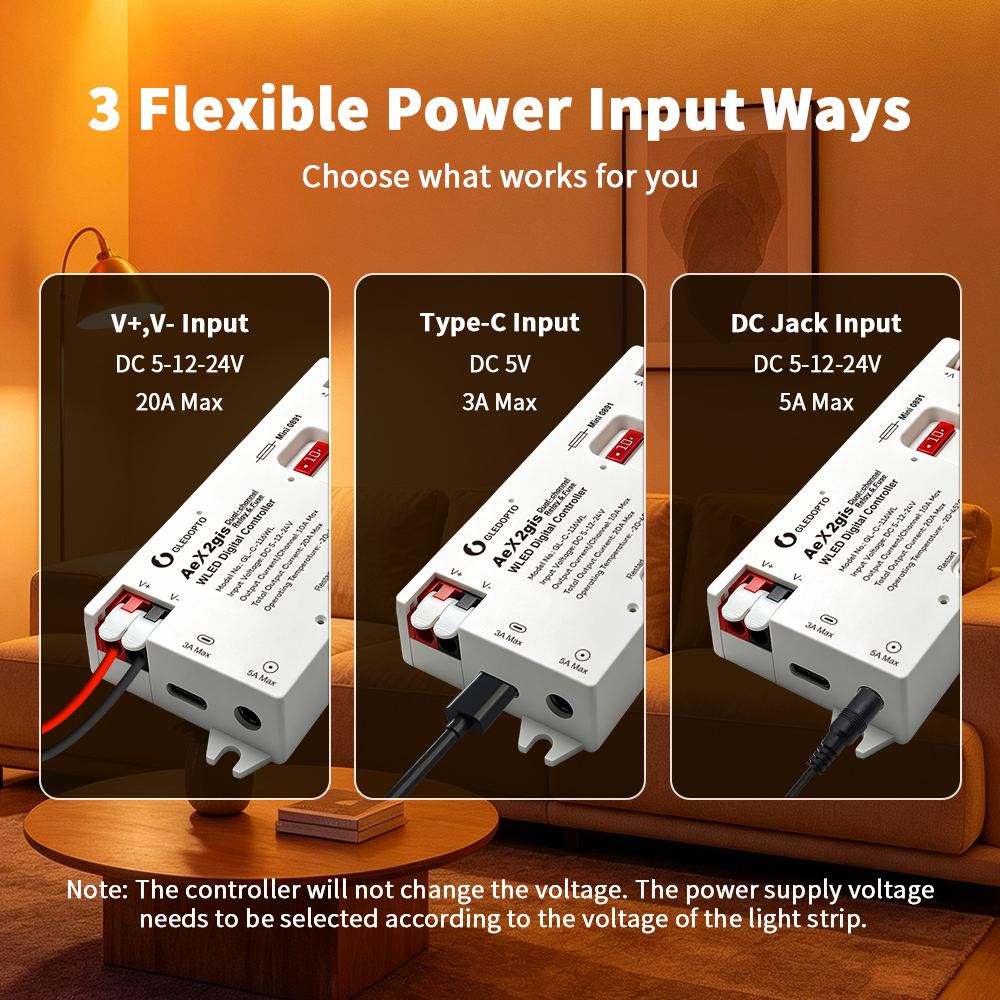

3 Flexible Power Input Ways
V+ / V− WAGO terminal (DC 5–12–24V, 20A Max) · Type-C input (DC 5V, 3A Max) · DC Jack input (DC 5–12–24V, 5A Max).
2-Channel Status Indicators
Quick fuse & relay fault self-check — green = relay configured and strip powered, red = fuse blown.

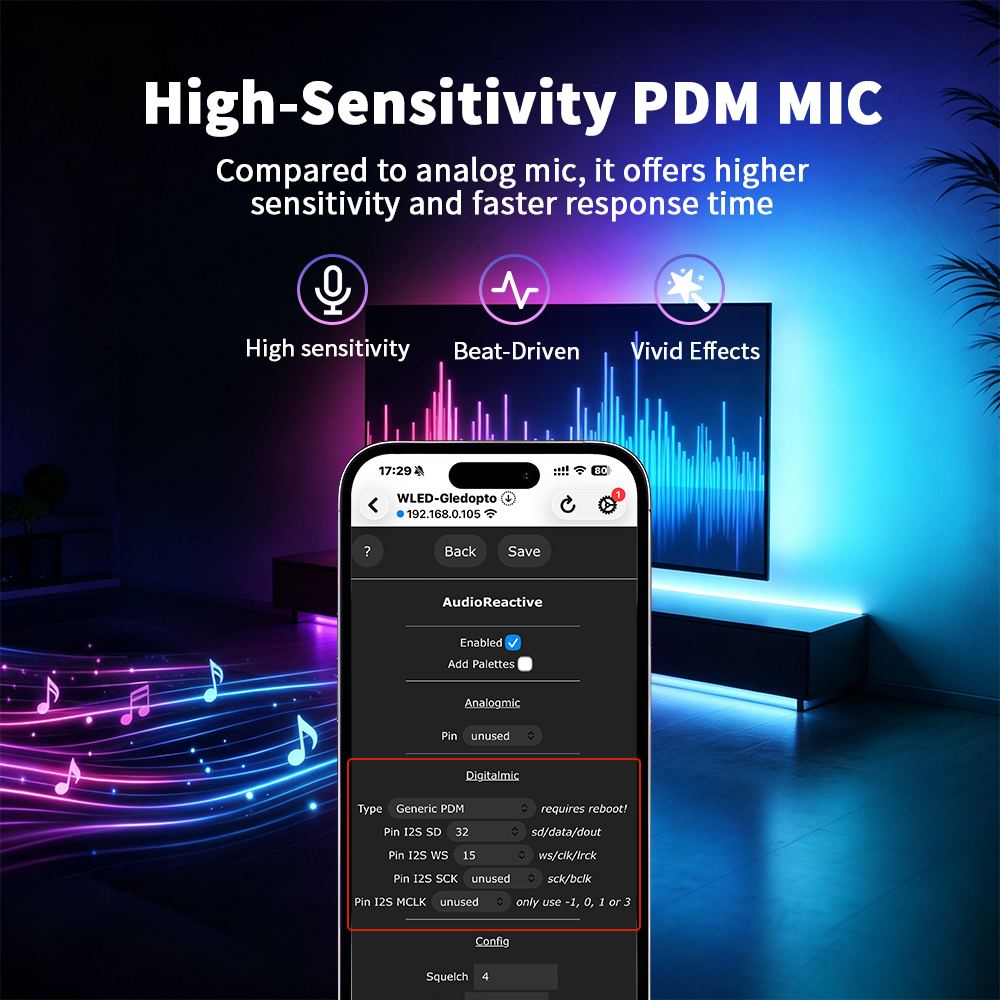

High-Sensitivity PDM MIC
Compared to analog mic, it offers higher sensitivity and faster response time — high sensitivity, beat-driven, vivid effects.
Functions & Control
App control, dynamic effects, remote control, DIY extension and firmware update.

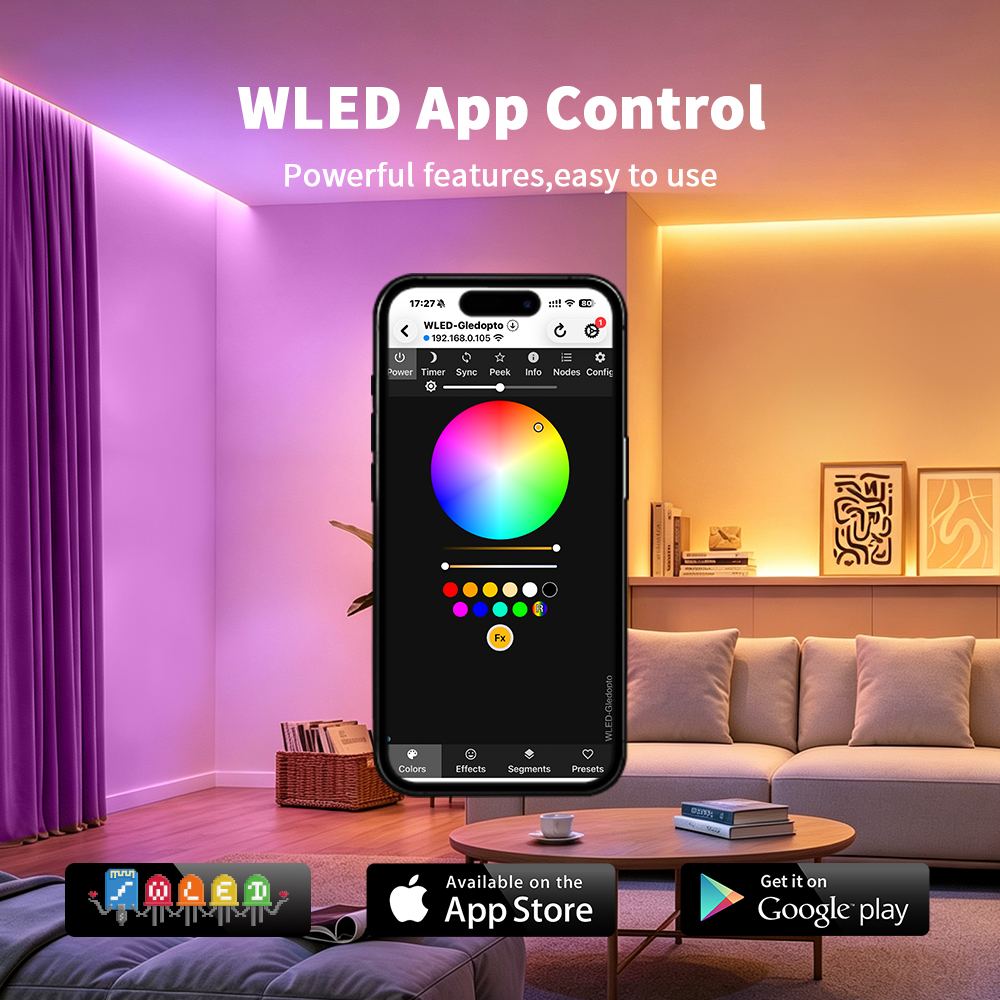

WLED App Control
Powerful features, easy to use. Available on the App Store and Google Play (WLED / WLED Native).
Over 200 Dynamic Effects
Blink, Pacifica, Rhythm, Rainbow, Aurora, Breathe, Meteor and more — create the perfect atmosphere for any occasion.

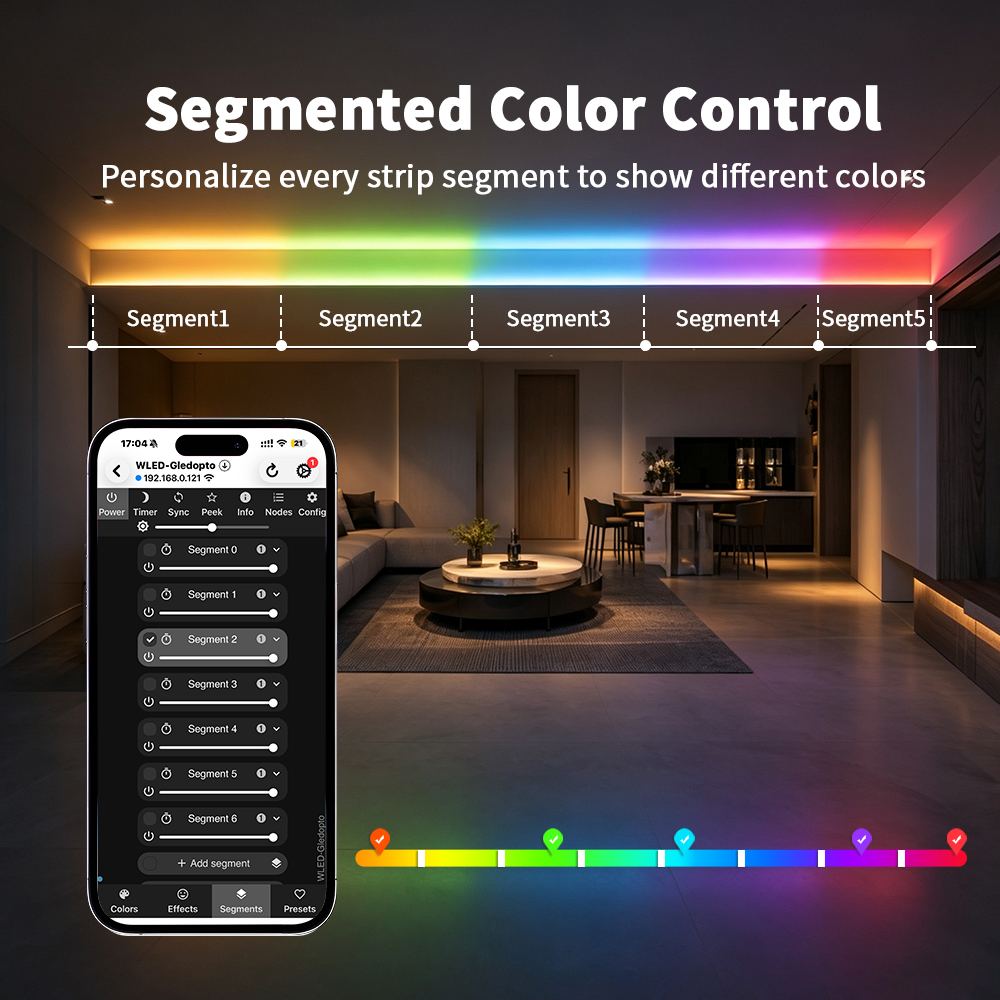

Segmented Color Control
Personalize every strip segment to show different colours, brightness and effects — up to dozens of independent segments.
WLED Remote Control
Long remote control distance, stable signal transmission. Keys: On/Off · Brightness · Scene · Night. Works with Gledopto WLED remote GL-RC-001WL / GL-RC-002WL.
Button Functions
Function button (GPIO17): short press = power on/off, long press 1s = adjust colour, long press 10s = reset. Restart button (EN) reboots the module.

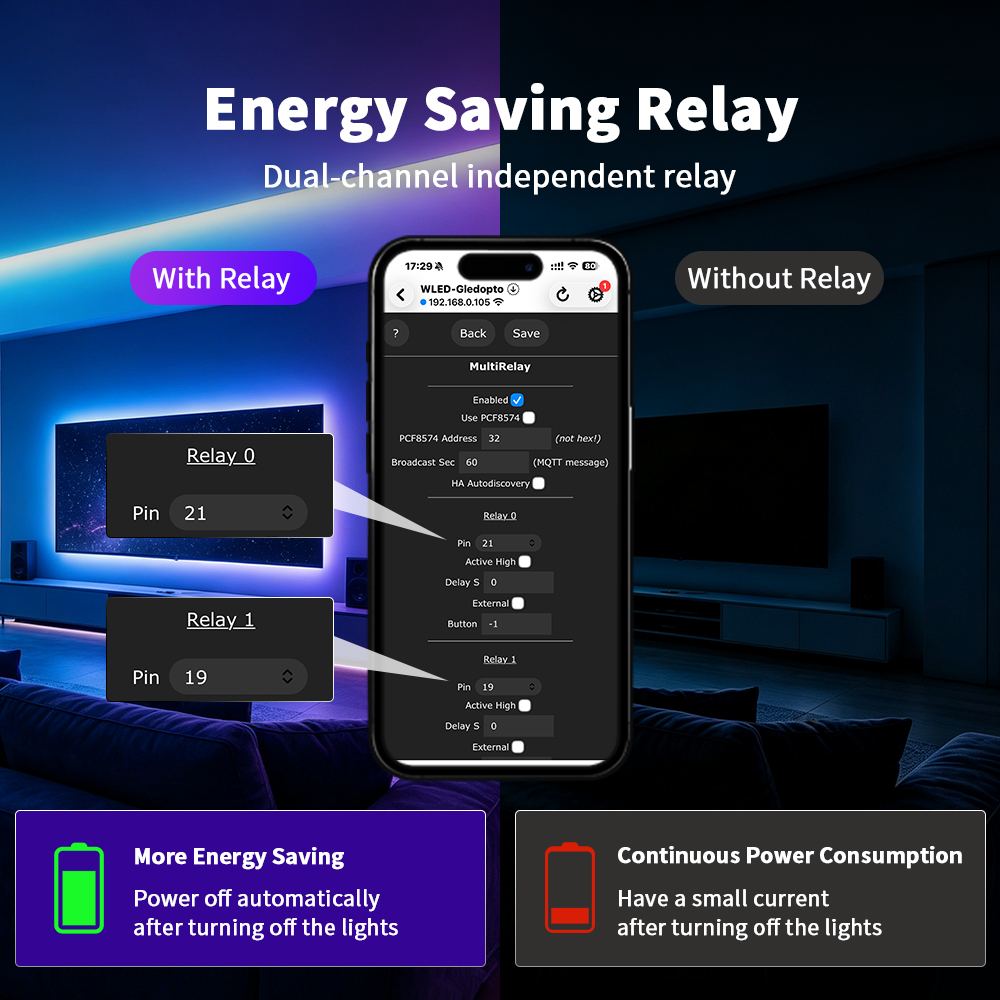

Energy Saving Relay
Dual-channel independent relay — Relay 0 pin 21, Relay 1 pin 19. The output power is cut off automatically after turning off the lights.
Sync Lighting
On the same WiFi network, the lighting effects of the LED strips connected to multiple WLED controllers can be synchronised.

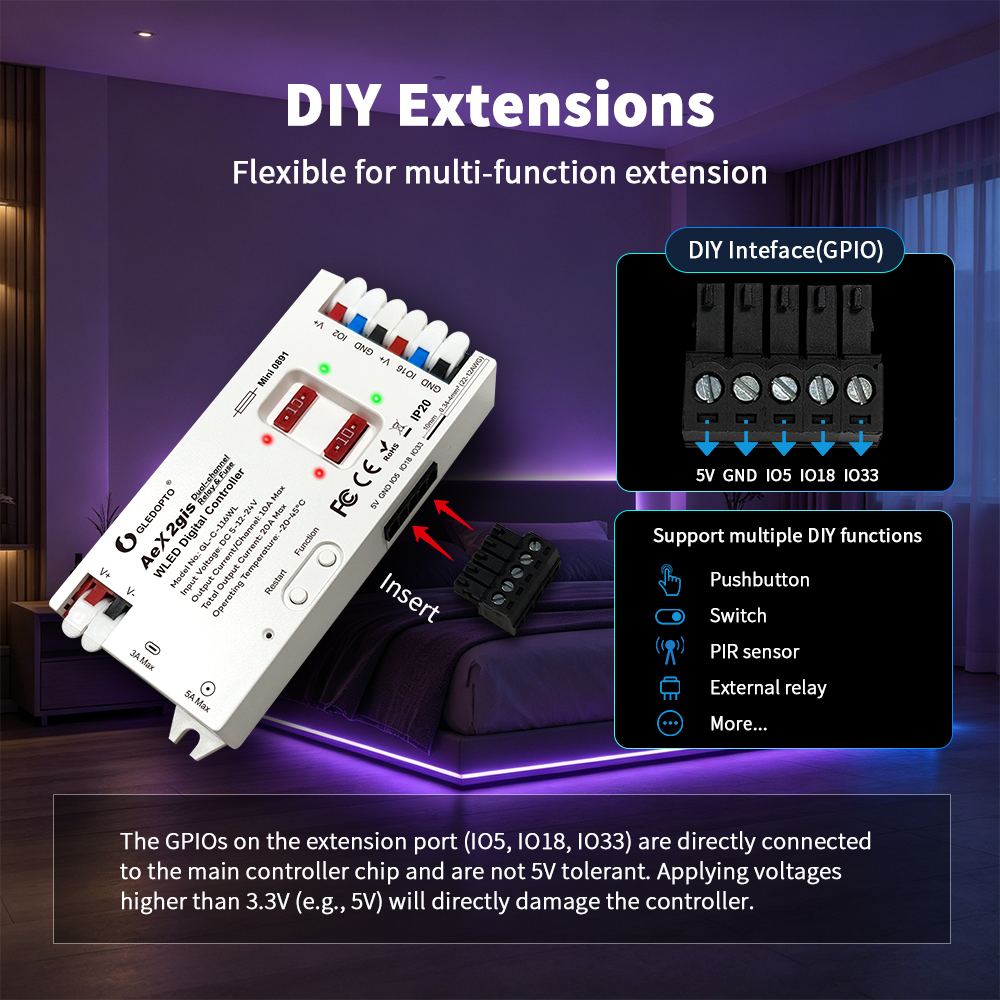

DIY Extensions
Flexible for multi-function extension. Support pushbutton, switch, PIR sensor, external relay and more through the GPIO interface.

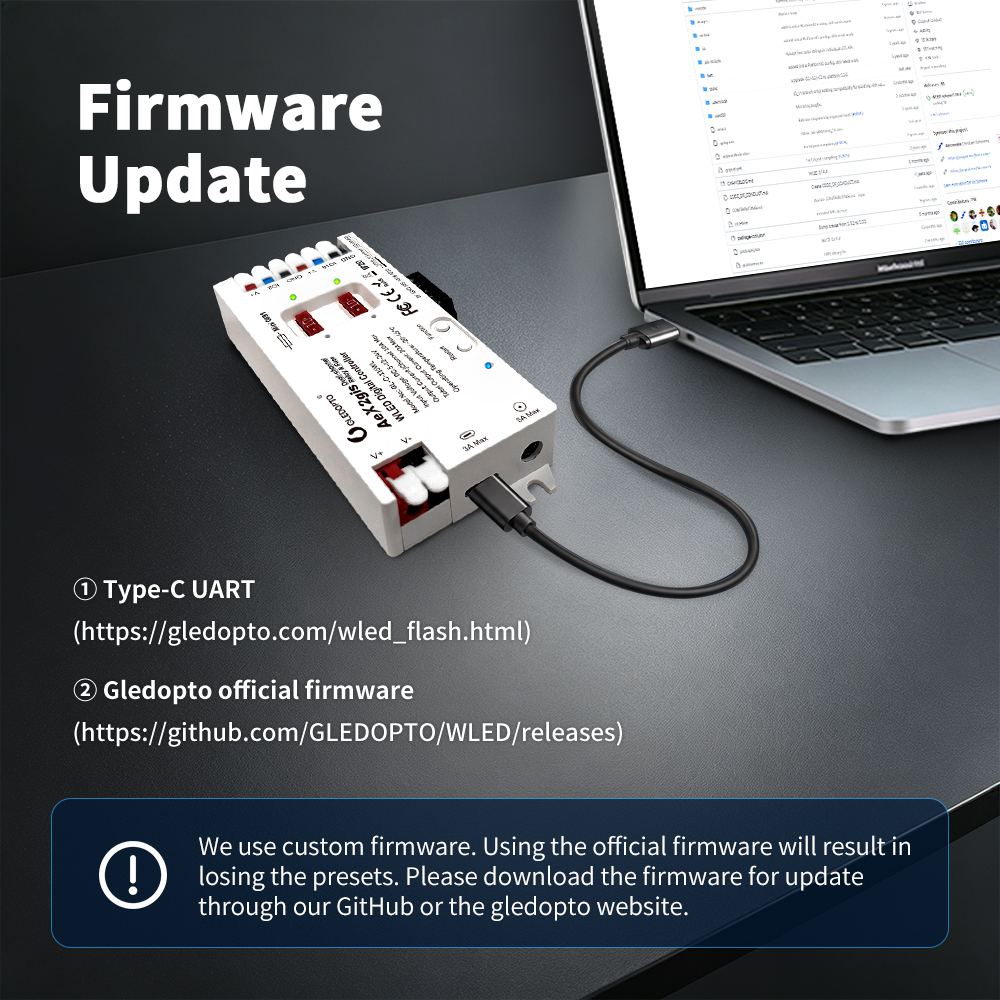

Firmware Update
Update via Type-C UART flasher or the Gledopto official firmware on GitHub. Please use Gledopto custom firmware to keep your presets.
Compatible Light Strips
WS2811, WS2811F, WS2812B, WS2814A, WS2815, SK6812, SM16703, SM16703SP3, FL19038, FW1035, UCS2903B, etc.
Application & Product Details
Real scene display, product overview, wiring diagram and appearance details.
Scene Display
Living room · bedroom · kitchen · display cabinet · staircase — one controller for every space.

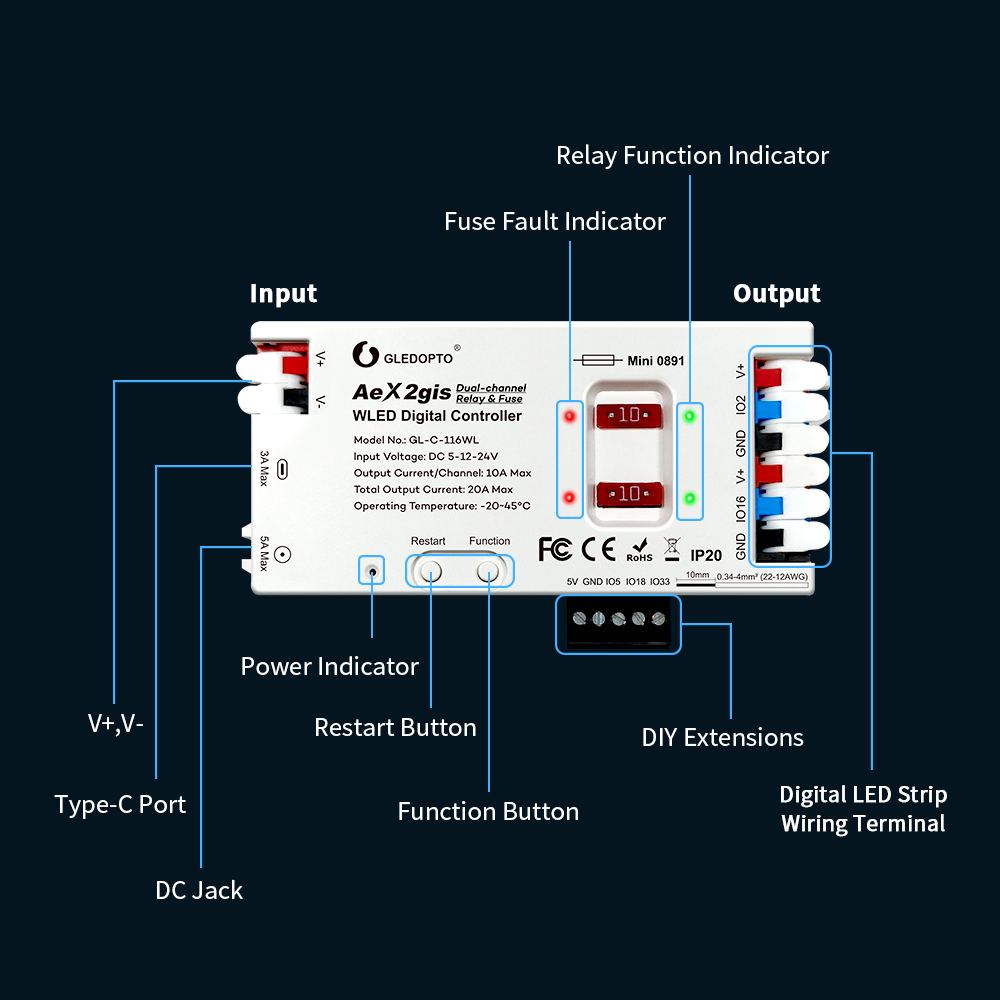

Product Overview
Input (V+, V− / Type-C port / DC jack) · power indicator · restart & function button · fuse fault indicator · relay function indicator · digital LED strip wiring terminal · DIY extensions.
Wiring Diagram
Easy to connect. Open the connector upwards, insert the wire and press down. Output terminals: V+, IO2, GND / V+, IO16, GND — connect to the strip VCC, DATA, GND.

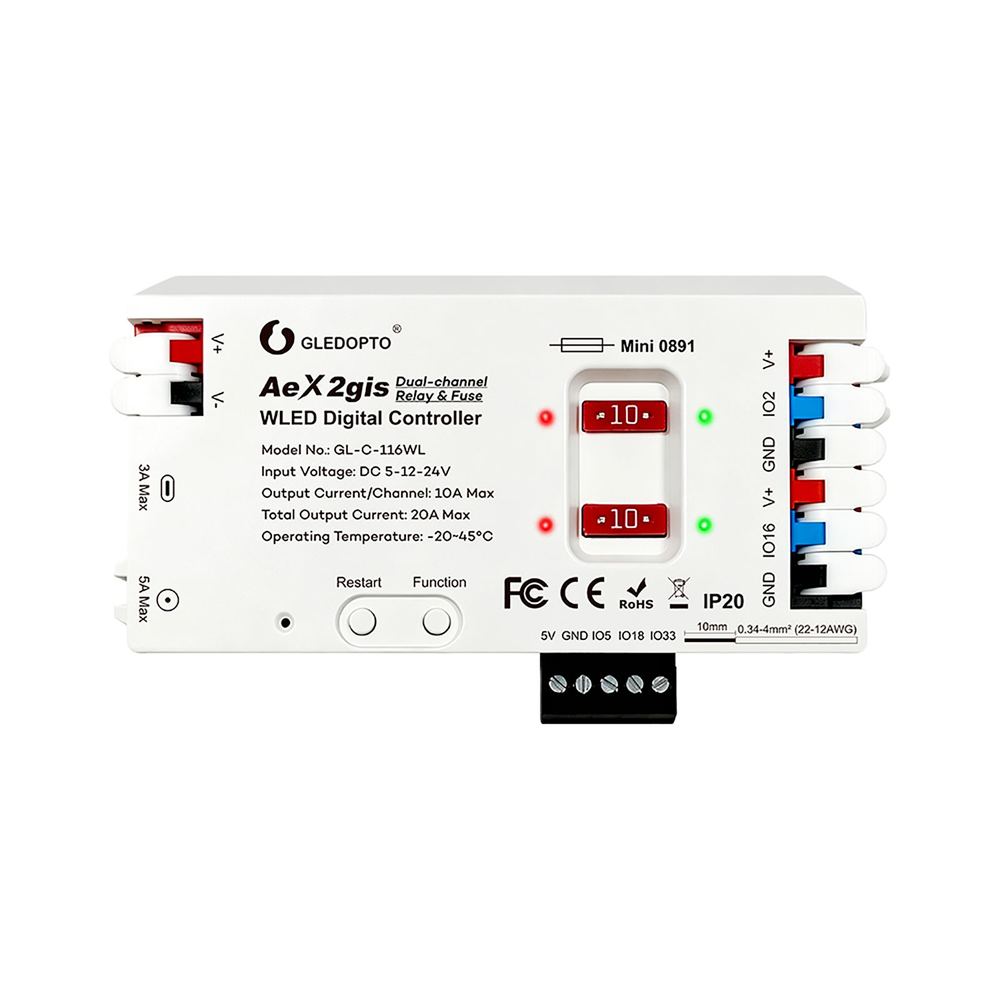

Front View — Ports & Terminals
Flame-retardant PC housing, 113 × 47.5 × 19 mm, IP20, net weight 63.5 g.
3/4 View — Fuses, DC Jack & Type-C

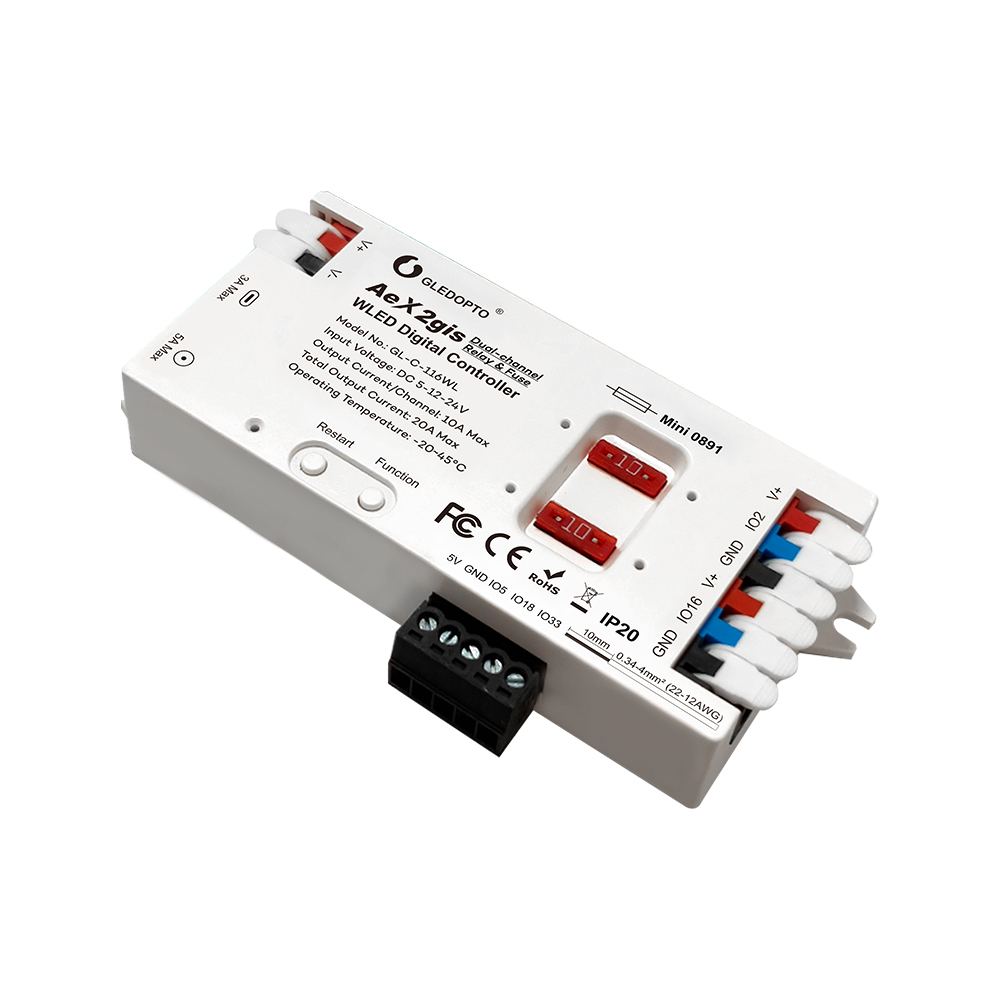

Dual 10A MINI blade fuses, DC jack and Type-C input on one compact body.
Parameters & Package
Full technical specifications, dimensions and what is in the box.
Product Parameters
Craftsman spirit, quality is guaranteed.

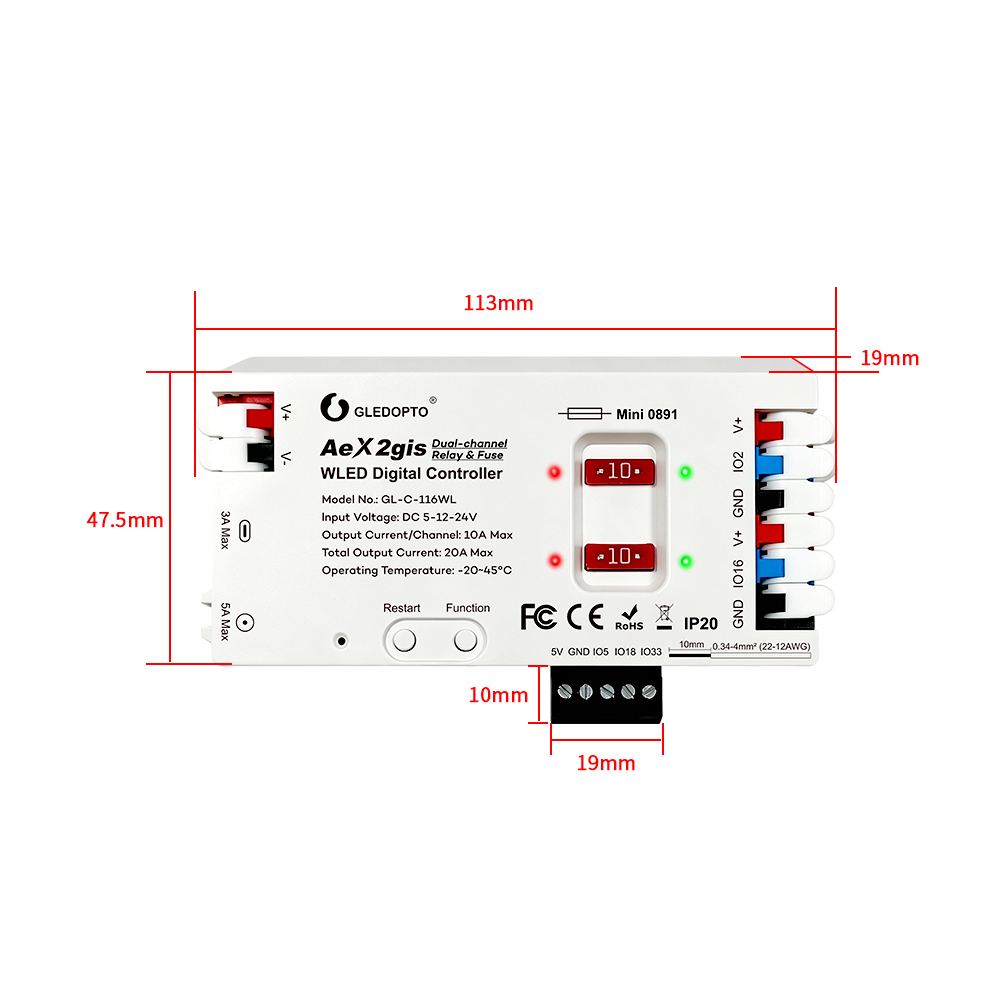

Product Size
113 × 47.5 × 19 mm — compact enough to hide inside a profile or behind a cabinet.

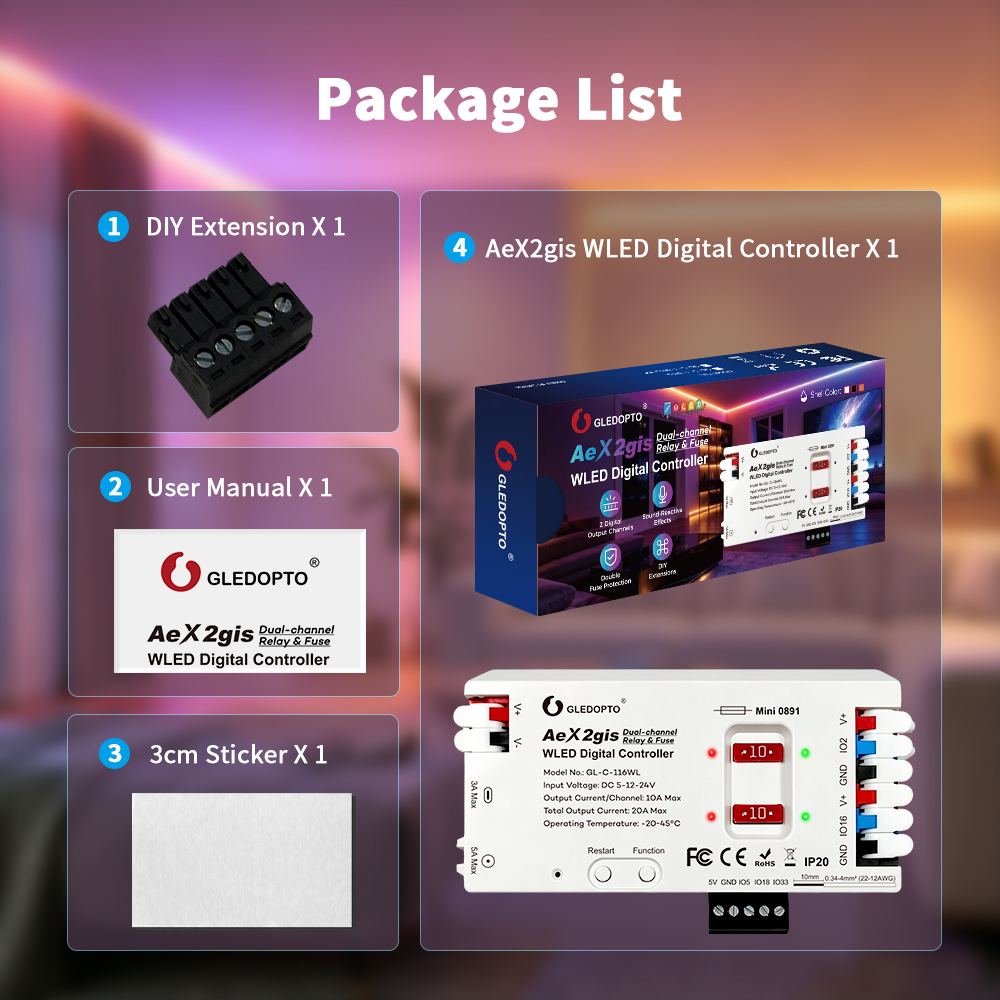

Package List
1 × AeX2gis WLED Digital Controller · 1 × DIY Extension · 1 × User Manual · 1 × 3 cm Sticker.
| Model No. | GL-C-116WL（WiFi） / GL-C-116WL-RF（WiFi + 2.4G RF） |
|---|---|
| Control Protocol | WiFi 2.4GHz (WLED) · optional 2.4G RF remote |
| Input Terminal | V+ / V− WAGO terminal (5–12–24V, 20A Max) |
| Input Voltage | DC 5–12–24V |
| Input Current | 20A Max |
| Total Output Current | 20A Max |
| Output Current / Channel | 10A Max（2 channels） |
| Type-C Input | DC 5V / 3A Max |
| DC Jack Input | DC 5–12–24V / 5A Max（Φ5.5 × Φ2.1 mm） |
| Relay | 2 × PMOS DC electronic switch analog relay（Relay 0 = Pin 21, Relay 1 = Pin 19） |
| Fuse | 2 × 10A detachable MINI blade fuse（Mini 0891） |
| DIY GPIO Ports | 5V / GND / IO5 / IO18 / IO33（3.3V logic, NOT 5V tolerant） |
| DIY 5V Interface Output | 300mA Max |
| Microphone | Digital PDM mic（Generic PDM · I2S SD = 32 · I2S WS = 15） |
| Recommended IC Quantity | 800 × 2 Max |
| Compatible ICs | WS2811, WS2811F, WS2812B, WS2814A, WS2815, SK6812, SM16703, SM16703SP3, FL19038, FW1035, UCS2903B, etc. |
| Compatible Remote | Gledopto GL-RC-001WL / GL-RC-002WL（ESP-NOW wireless） |
| Operating Temperature | -20 ~ 45 °C |
| IP Rating | IP20 |
| Material | Flame-retardant PC |
| Size | 113 × 47.5 × 19 mm |
| Net Weight / Gross Weight | 63.5 g / 76.3 g |
Notes Before Use
- The controller does not change the voltage — please choose the power supply according to the voltage of your LED strip.
- The GPIO extension pins (IO5, IO18, IO33) are directly connected to the main chip and are not 5V tolerant. Applying more than 3.3V (e.g. 5V) will damage the controller.
- Always power off before wiring. Make sure all electrical connections are correct and tight.
- Please use Gledopto official firmware for updates, otherwise the custom presets will be lost.
- Default WiFi hotspot: WLED-AP, password wled1234. Keep the phone and controller on the same WiFi network.
- Indoor use only (IP20). Avoid damp, dusty or high-temperature environments.
